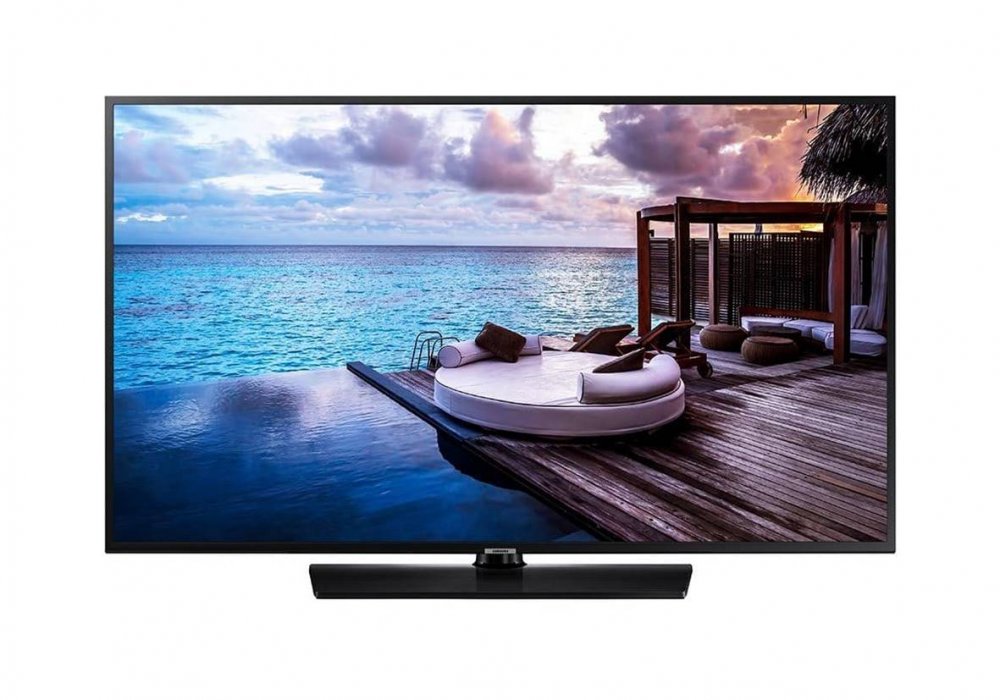

Samsung HG55AJ690UGXXP Specifications

   Compare Icon View Other Samsung LED TVs
Appx Price Rs.99,300.00
WhatsApp Icon   Facebook Icon   Twitter Icon
TV Type LED TV
Screen Size 55 Inch (139 cm)
Screen Resolution 4K 3840 x 2160
Aspect Ratio 16:9
Motion Rate 60 Hz
Viewing Angle 178°/178°
View Latest 55.00 inch LED TV Prices & Features

USB Features

USB Version 2.0
Supported Audio Formats MP3, AAC, WAV, WMA
Supported Video Formats AVI, MKV, ASF, MP4, 3GP, MOV, FLV, VRO, VOB, PS, TS
Supported Picture Formats JPG, JPEG

Other Video Features

Backlight 4K UHD LED
HDR10+ Yes
Film Mode Yes
Auto Motion Plus Yes
Micro Dimming UHD Dimming
Picture Engine UHD Mastering Engine

Other Audio Features

Sound Output ( RMS ) 20 W
Dolby Digital Plus Yes
Speaker Type 2 Channel

Connectivity Options

HDMI NA
USB 2.0 2 Side
RJ12 Rear
Variable Audio Out Rear
RJP ( Remote Jackpack ) Rear
Variable Audio Out Volume Control Rear
BT HID Built-In Yes
Wireless LAN Built-In Yes
Anynet + ( HDMI-CEC ) Yes
HDMI A / Return Ch. Support Yes
Composite In ( AV ) 1 ( Common Use For Component Y )
RF In ( Terrestrial / Cable Input / Satellite Input ) 1 / 1 ( Common Use For Terrestrial ) / 0

Smart TV Features

Operating System Tizen
CPU Quad-Core
Soft AP Yes
SMART TV Yes
My Channel Yes
USB Cloning Yes
Security Mode Yes
Power On Mode Yes
Auto Source Mode Yes
Hotel Channel List Yes
Welcome Message Yes
Clock Back Up Supply Yes
RJ12 / IR pass through Yes
Smoovie Compatibility Yes
Channel Menu Display Yes
Samsung LYNK™ DRM Yes
Screwed Battery Cover Yes
Wake-up Timer ( Alarm ) Yes
Hospitality Home Menu Yes
Sound Bar Compatibility Yes
H. Browser Compatibility Yes
S / W EPG ( Solution EPG ) Yes
On / Off Timer ( Schedule ) Yes
Multi Code Remote Control Yes
Music Mode BackLight On/Off Yes
Mobile To TV - Mirroring, DLNA Yes
Energy Saving Mode ( BLU control ) Yes
Samsung LYNK™ HMS Compatibility Yes
Hospitality Plug & Play ( Easy Set-Up ) Yes
Logo Display With Time Out Setting ( BMP / Movie ) Yes
Music Mode ( Input : PC / AV / Component / HDMI ) Yes
Bluetooth Music Player ( Mobile → TV ) Yes
Samsung LYNK™REACH ( IP ) REACH 4.0
Samsung LYNK™REACH ( RF ) REACH 4.0
Mixed Channel List ( ATSC, DVB-T/T2/C/S2, Analog )

Other Features

Design AirSlim Design
Front Color Charcoal Black
Stand Type Square
EPG Yes
Eco Sensor Yes
Game Mode Yes
Analog Tuner Yes
Auto Power Off Yes
USB HID Support Yes
Caption ( Subtitle ) Yes
Digital Clean View Yes
Auto Channel Search Yes
ConnectShare™ ( HDD ) Yes
ConnectShare™ ( USB 2.0 ) Yes
Digital Broadcasting ISDB-T
Swivel ( Left / Right ) 90/90
OSD Language Local Languages
Accessibility Voice Guide, Enlarge, High Contrast, Multi-Output Audio, Negative Colors, Grayscale

General Specifications

Power Supply AC110-120V 50/60Hz
Max Power Consumption 150 W
Weight Without Stand 17.3 Kg
Weight With Stand 20.5 Kg
Weight Of Package Carton 26.5 Kg

Supplied Accessories

Remote Control TM1240A
Batteries Yes
Data Cable Yes
Stand Mount Kit Yes
Quick Install Guide Yes
VESA Wall Mount Support Yes
Mini Wall Mount Support Yes
