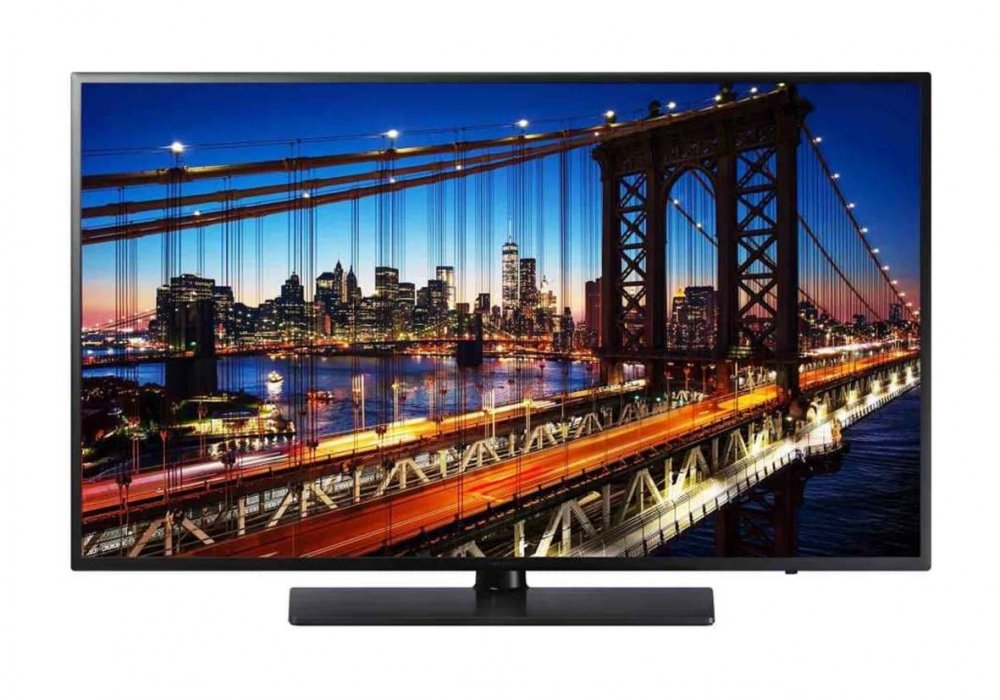

Samsung HG49EF690DB Specifications

   Compare Icon View Other Samsung LED TVs
Appx Price Rs.36,000.00
WhatsApp Icon   Facebook Icon   Twitter Icon
TV Type LED TV
Screen Size 49 Inch (124.46 cm)
Screen Resolution 1920 x 1080
Aspect Ratio 16:9
Motion Rate 60 Hz
Viewing Angle 178°/178°
View Latest 49.00 inch LED TV Prices & Features

USB Features

USB Version 2.0
Supported Audio Formats MP3, AAC, WAV, WMA
Supported Video Formats AVI, MKV, ASF, MP4, 3GP, MOV, FLV, VRO, VOB, PS, TS
Supported Picture Formats JPG, JPEG

Other Video Features

Backlight FHD LED
Film Mode Yes
Natural Mode Support Yes
Wide Color Enhancer ( Plus ) Yes
Micro Dimming M/D Pro
Picture Quality Index 400.0 PQI
Picture Engine HyperReal
Dynamic Contrast Ratio Mega Contrast

Other Audio Features

Sound Output ( RMS ) 20 W ( L : 10 W, R : 10 W )
Dolby Digital Plus Yes
Bluetooth Audio Yes
Speaker Type 2 CH ( Down Firing w/Bass Reflex )

Connectivity Options

HDMI 3 ( 2 Side, 1 Rear )
USB 2.0 2 Side
Ethernet / LAN Side
Variable Audio Out Side
RJP ( Remote Jackpack ) Side
Digital Audio Out ( Optical ) Side
Variable Audio Out Volume Control Side
RF In ( Terrestrial / Cable input / Satellite Input ) Side
RJ12 Rear
CI Slot Rear
Headphone Rear
Headphone ID Rear
Composite In ( AV ) Rear
Component In ( Y / Pb / Pr ) Rear
Ethernet Bridge ( LAN-Out ) Rear
BT HID Built-In Yes
HDMI Quick Switch Yes
Wireless LAN Built-In Yes
Anynet + ( HDMI-CEC ) Yes
HDMI A / Return Ch. Support Yes

Smart TV Features

Operating System Tizen
CPU Quad-Core
Soft AP Yes
Smart TV Yes
App Casting Yes
My Channel Yes
USB Cloning Yes
Web Browser Yes
Security Mode Yes
Power On Mode Yes
Auto Source Mode Yes
Hotel Channel List Yes
Welcome Message Yes
Clock Back Up Supply Yes
Samsung Smart View Yes
RJ12 / IR pass through Yes
Smoovie Compatibility Yes
Channel Menu Display Yes
Screwed Battery Cover Yes
Hospitality Home Menu Yes
Wake-up Timer ( Alarm ) Yes
Sound Bar Compatibility Yes
H. Browser Compatibility Yes
S/W EPG ( Solution EPG ) Yes
Samsung LYNK™ DRM IP Yes
Samsung LYNK™ DRM RF Yes
On / Off Timer ( Schedule ) Yes
External Clock Compatibility Yes
Multi Code Remote Control Yes
External Clock Dimming Control Yes
Mobile To TV - Mirroring, DLNA Yes
TTX Clock Update ( Analogue ) Yes
Energy Saving Mode ( BLU control ) Yes
Music Mode BackLight On/off Yes
Samsung LYNK™ HMS Compatibility Yes
Hospitality Plug & Play ( Easy Set-Up ) Yes
Logo Display With Time Out Setting ( BMP / Movie ) Yes
Bluetooth Music Player ( Mobile → TV ) Yes
Music Mode ( Input : PC / AV / Component / HDMI ) Yes
Samsung LYNK™REACH ( IP ) REACH 4.0
Samsung LYNK™REACH ( RF ) REACH 4.0
Mixed Channel List ( ATSC, DVB-T/T2/C/S2, Analog )

Other Features

Design M5500
Slim Type Step-Up Slim
Front Color Dark Titan
Stand Type Square
Bezel Type VNB
EPG Yes
Eco Sensor Yes
Game Mode Yes
Analog Tuner Yes
Teletext ( TTX ) Yes
Auto Power Off Yes
USB HID Support Yes
Digital Clean View Yes
Caption ( Subtitle ) Yes
Auto Channel Search Yes
ConnectShare™ ( HDD ) Yes
Energy Efficiency Class A+ Yes
ConnectShare™ ( USB 2.0 ) Yes
Digital Broadcasting DVB-T2CS2
Common Interface ( CI ) CI + ( 1.3 )
Swivel ( Left / Right ) Yes ( 90 / 90 )
OSD Language 27 European Languages + Russian ( Only when connecting to Network in EE, LV, LT )
Data Broadcasting HbbTV 1.5 ( CZ, SK, DE, AT, FR, ES, EE), HbbTV 1.0 ( PL, HU, CH, BE, NL, LU, PT, DK, FI ), MHEG 5 ( GB, IE )
Accessibility Voice Guide ( UK English, German, French, Spanish, Italian, Dutch, Polish, Danish, Swedish, Finnish, Norwegian, Portuguese, Russian ( Only when connecting to Network in EE, LV, LT ) ), Enlarge, High Contrast, Multi-Output Audio

General Specifications

Power Supply AC220-240V 50/60Hz
Max Power Consumption Max 100.0 W
Power Consumption Typical 59.0 W
Power Consumption ( Energy Saving Mode ) 21.7 W
Power Consumption Standby 0.5 W
Weight Without Stand 13.0 Kg
Weight With Stand 16.0 Kg
Weight Of Package Carton 19.6 Kg

Supplied Accessories

Remote Control TM1240A
Batteries Yes
Data Cable Yes
Power Cable Yes
Stand Mount Kit Yes
Quick Install Guide Yes
VESA Wall Mount Support Yes
